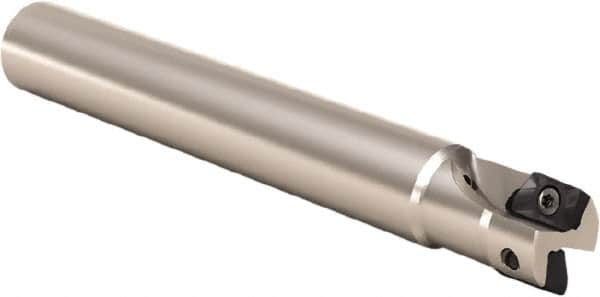

Seco - 20mm Cut Diam, 11mm Max Depth of Cut, 18mm Shank Diam, 150mm OAL, Indexable Square Shoulder End Mill - XO.. 1204 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Super Turbo
Item #: 77901791
Brand: Seco
Model #: 51188
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 18.00 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Overall Length/Projection (mm) | 150.00 |
| Overall Length/Projection (Decimal Inch) | 5.9055 |
| Lead Angle | 90 |
| Series | Super Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Weldon Flat | No |
| Insert Compatibility | XO.. 1204 |
| Shank Length (Decimal Inch) | 4.7244 |
| Shank Length (mm) | 120.00 |
| Maximum RPM | 23200 |
