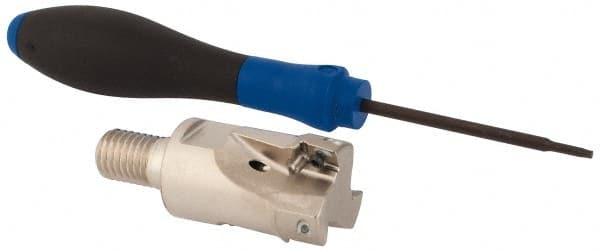

Seco - 1" Cut Diam, 0.354" Max Depth of Cut, 1.575" OAL, Indexable Square Shoulder End Mill - XOEX, XOMX Inserts, M12 Modular Connection, 90° Lead Angle, Through Coolant, Series Turbo 10
Item #: 77902419
Brand: Seco
Model #: 68447
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Modular Connection |
| Modular Connection Size | M12 |
| Overall Length/Projection (Decimal Inch) | 1.5750 |
| Lead Angle | 90 |
| Series | Turbo 10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R217.69-10 |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 1.5750 |
| Weldon Flat | No |
| Insert Compatibility | XOEX; XOMX |
| Maximum RPM | 23500 |
| Toolholder Material | Steel |
