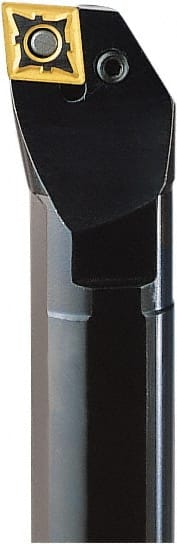

Seco - 32mm Min Bore Diam, 300mm OAL, 25mm Shank Diam, S-PCLN Indexable Boring Bar - 40mm Max Bore Depth, CN.. 1204.. Insert, Pin Lock Assembly Holding Method
Item #: 77904829
Brand: Seco
Model #: 00272
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-PCLN |
| Series | Pin Lock |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 40.00 |
| Maximum Bore Depth (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | CN.. 1204.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Pin Lock Assembly |
| Rake | Negative |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -6 |
| Complete Insert Compatibility | CNGA 120404S-01525-L1-U; CNGA 120404S-L0-B; CNGA 120408E-L1-B; CNGA 120408E25-L1-U; CNGA 120408S-01525-L1-B; CNGA 120408S-01525-L1-U; CNGA 120408S-02020-L1-B; CNGA 120408S-L0-B; CNGA 120412S-01525-L1-B; CNGA 120412S-01525-L1-U; CNGA 120412S-L0-B; CNGA 120 |
| Toolholder Material | Steel |
