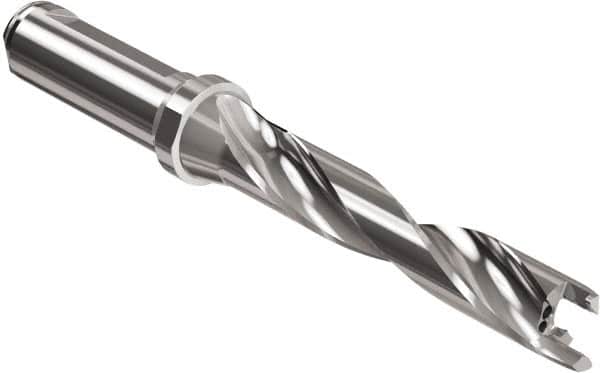

Seco - 14 to 14.99mm Diam, 5xD, 75mm Max Depth, 16mm Shank Diam, 84.5mm Flute, 146.5mm OAL, Replaceable Tip Drill - SD405 Toolholder, Series Crownloc Plus
Item #: 77905537
Brand: Seco
Model #: 40113
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Minimum Drill Diameter (mm) | 14.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5512 |
| Maximum Drill Diameter (mm) | 14.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5902 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.9528 |
| Maximum Drill Depth (mm) | 75.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Toolholder Style | SD405 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (mm) | 84.50 |
| Flute Length (Decimal Inch) | 3.3268 |
| Body Length (mm) | 98.50 |
| Body Length (Decimal Inch) | 3.8780 |
| Toolholder Coating | TiAlN |
| Overall Length (mm) | 146.50 |
| Overall Length (Decimal Inch) | 5.7677 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
