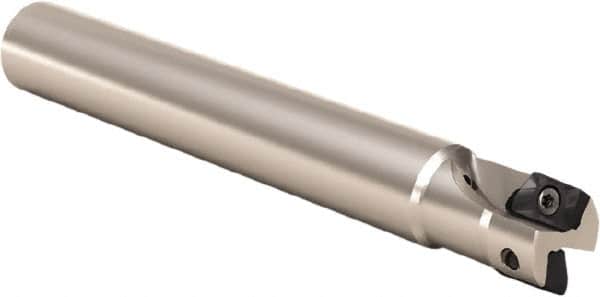

Seco - 25mm Cut Diam, 9mm Max Depth of Cut, 22mm Shank Diam, 200mm OAL, Indexable Square Shoulder End Mill - XOMX 10T3 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Turbo 10
Item #: 77906873
Brand: Seco
Model #: 68432
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 22.00 |
| Shank Diameter (Decimal Inch) | 0.8661 |
| Overall Length/Projection (mm) | 200.00 |
| Overall Length/Projection (Decimal Inch) | 7.8740 |
| Lead Angle | 90 |
| Series | Turbo 10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (mm) | 28.40 |
| Head Length (Decimal Inch) | 1.1181 |
| Weldon Flat | No |
| Insert Compatibility | XOMX 10T3 |
| Shank Length (Decimal Inch) | 6.6929 |
| Shank Length (mm) | 170.00 |
| Maximum RPM | 23500 |
