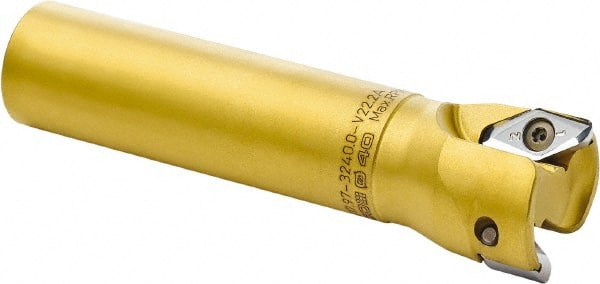

Seco - 32mm Cutting Diam, 25mm Shank Diam, 10mm Max Depth of Cut, Straight Shank Indexable Copy End Mill - 2 Inserts, VPGX 2206..E.-E10 Insert, R217.97 Toolholder, Through Coolant
Item #: 77908408
Brand: Seco
Model #: 35425
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Number of Cutter Inserts | 2 |
| Insert Style | VPGX 2206..E.-E10 |
| Toolholder Style | R217.97 |
| Overall Length (Decimal Inch) | 4.7240 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Minimum Cutting Diameter (mm) | 32.00 |
| Head Length (mm) | 45.00 |
| Head Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 75.00 |
| Shank Length (Decimal Inch) | 2.9528 |
| Maximum RPM | 40000 |
| Minimum Cutting Diameter (Decimal Inch) | 1.2598 |
