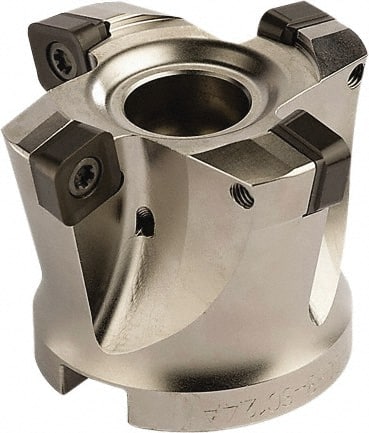

Seco - 6 Inserts, 3.1496" Cutter Diam, 0.0787" Max Depth of Cut, Indexable High-Feed Face Mill - 1.063" Arbor Hole Diam, 0.4882" Keyway Width, 1.9685" High, SCE.. 1206.. Inserts
Item #: 77909018
Brand: Seco
Model #: 44898
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Overall Height (Decimal Inch) | 1.9685 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | SCE.. 1206.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 8500 |
| Maximum Body Diameter (Decimal Inch) | 2.4016 |
| Through Coolant | Yes |
| Complete Insert Compatibility | SCET 120630T-M14; SCET 120630T-MD16 |
| Keyway Width (Decimal Inch) | 0.4882 |
