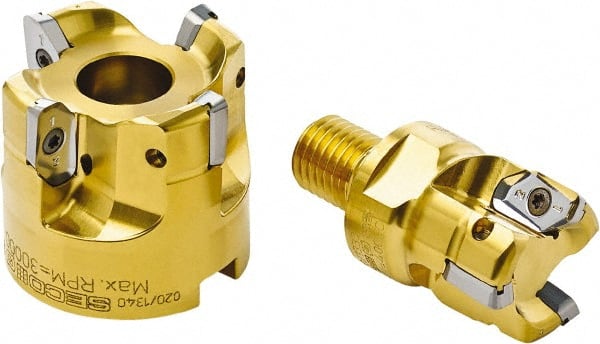

Seco - 50mm Cut Diam, 7.5mm Max Depth, 22mm Arbor Hole, 4 Inserts, XP.. 12 Insert Style, Indexable Copy Face Mill - 30,000 Max RPM, 45mm High, Through Coolant
Item #: 77909208
Brand: Seco
Model #: 19553
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Maximum Depth of Cut (mm) | 7.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2953 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (mm) | 45.00 |
| Overall Height (Decimal Inch) | 1.7717 |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | XP.. 12 |
| Through Coolant | Yes |
| Maximum RPM | 30000 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | XPKX 12T304PDER-E08; XPKX 12T308PDER-E08; XPKX 12T320PDER-E08; XPKX 12T324PDER-E08; XPKX 12T331PDER-E08; XPKX 12T340PDER-E08 |
