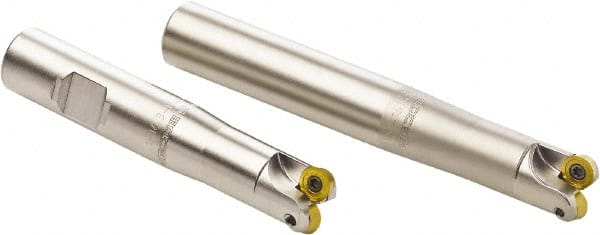

Seco - 16mm Cutting Diam, 16mm Shank Diam, 4mm Max Depth of Cut, Straight Shank Indexable Copy End Mill - 2 Inserts, RD.. 0803 Insert, R217.29 Toolholder, Carbide
Item #: 77909331
Brand: Seco
Model #: 07679
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Number of Cutter Inserts | 2 |
| Insert Style | RD.. 0803 |
| Toolholder Style | R217.29 |
| Overall Length (Decimal Inch) | 6.2990 |
| Insert Diameter (mm) | 8.00 |
| Insert Diameter (Decimal Inch) | 0.3150 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Minimum Cutting Diameter (mm) | 8.00 |
| Head Length (mm) | 100.00 |
| Head Length (Decimal Inch) | 3.9370 |
| Shank Length (mm) | 95.00 |
| Shank Length (Decimal Inch) | 3.7402 |
| Maximum RPM | 36200 |
| Minimum Cutting Diameter (Decimal Inch) | 0.3150 |
