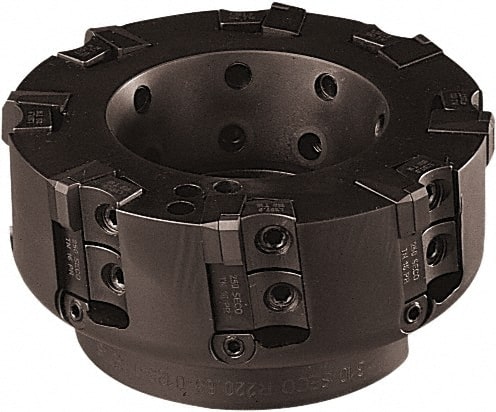

Seco - 6 Inserts, 4" Cut Diam, 1-1/2" Arbor Diam, 0.236" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 2.48" High, TN.. 22 Insert Compatibility
Item #: 77910206
Brand: Seco
Model #: 37910
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | TN.. 22 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutting Rake Angle | -6 |
| Rake | Negative |
| Keyway Width (Decimal Inch) | 0.6300 |
| Maximum RPM | 7600 |
| Complete Insert Compatibility | TNGN 22PNE; TNGN 22PNS; TNGN 22PRS |
