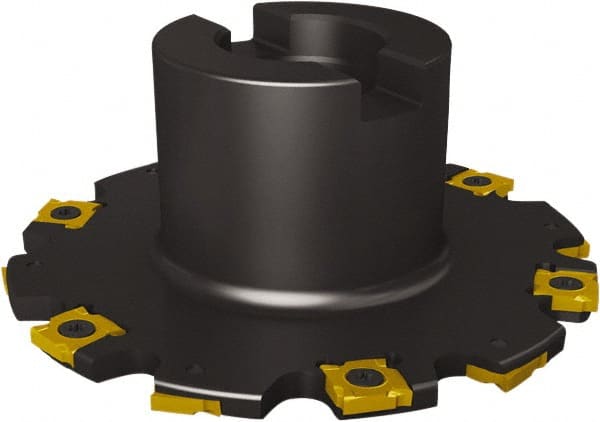

Seco - Shell Mount Connection, 0.4724" Cutting Width, 1.1614" Depth of Cut, 125mm Cutter Diam, 1.2598" Hole Diam, 6 Tooth Indexable Slotting Cutter - R335.19 Toolholder, SNHQ 1207 Insert, Right Hand Cutting Direction
Item #: 77910461
Brand: Seco
Model #: 31044
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 12.00 |
| Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 29.50 |
| Maximum Depth of Cut (Decimal Inch) | 1.1614 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 6 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1207 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 5300 |
| Minimum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (mm) | 12.00 |
| Hub Diameter (mm) | 58.00 |
| Hub Diameter (Decimal Inch) | 2.2835 |
| Radius | No |
| Rake | Negative |
| Complete Insert Compatibility1 | SNHQ 120702TL4-M07; SNHQ 120702TR4-M07; SNHQ 120704EL4-E05; SNHQ 120704ER4-E05; SNHQ 120704TL4-M07; SNHQ 120704TR4-M07; SNHQ 120708TL4-M07; SNHQ 120708TR4-M07; SNHQ 120712TL4-M07; SNHQ 120712TR4-M07; SNHQ 120716TL4-M07; SNHQ 120716TR4-M07; SNHQ 120720TL4- |
