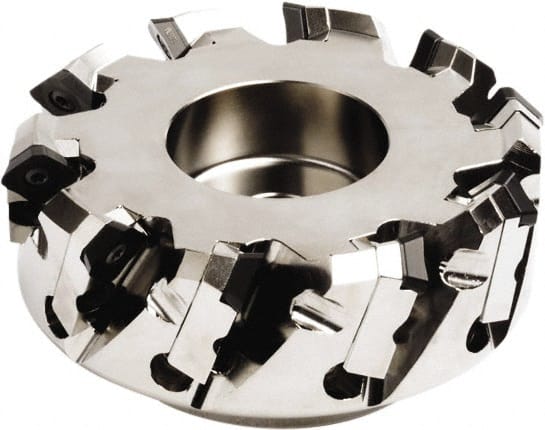

Seco - 137mm Cut Diam, 40mm Arbor Hole, 6mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 8 Inserts, SE.. 1204 Insert, Right Hand Cut, 8 Flutes, Series QuattroMill
Item #: 77910594
Brand: Seco
Model #: 18657
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 137.00 |
| Cutting Diameter (Decimal Inch) | 5.3937 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | SE.. 1204 |
| Series | QuattroMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Number of Flutes | 8 |
| Cutting Rake Angle | 10 |
| Rake | Positive |
| Hub Diameter (Decimal Inch) | 3.5433 |
| Hub Diameter (mm) | 90.00 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Maximum Body Diameter (Decimal Inch) | 4.9213 |
| Maximum RPM | 5900 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Complete Insert Compatibility | SEEX 1204AFN-E08; SEEX 1204AFN-M10; SEEX 1204AFTN-M14; SEEX 1204AFTN-MD18; SEEX 1204AFTN-ME11; SEEX 1204ZZTN-M14; SEMX 1204AFTN-M15; SEMX 1204AFTN-MD19; SEMX 1204AFTN-ME12 |
