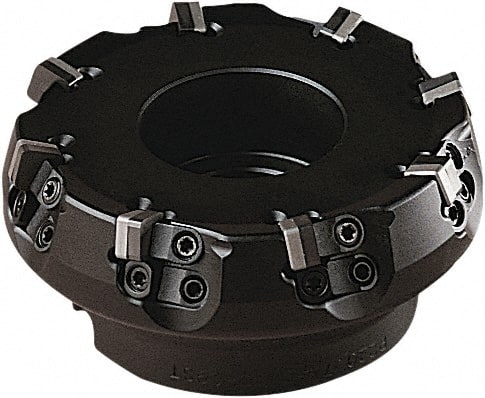

Seco - 202.3mm Cut Diam, 60mm Arbor Hole, 8mm Max Depth of Cut, 75° Indexable Chamfer & Angle Face Mill - 13 Inserts, SN.. Insert, Right Hand Cut, 12 Flutes, Series R220.74
Item #: 77910859
Brand: Seco
Model #: 23748
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 202.30 |
| Cutting Diameter (Decimal Inch) | 7.9646 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Lead Angle | 75 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | SN.. |
| Series | R220.74 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 13 |
| Insert Holding Method | Screw |
| Number of Flutes | 12 |
| Cutting Rake Angle | -6 |
| Rake | Negative |
| Hub Diameter (Decimal Inch) | 5.1181 |
| Hub Diameter (mm) | 130.00 |
| Keyway Width (mm) | 25.70 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Maximum Body Diameter (Decimal Inch) | 7.8740 |
| Maximum RPM | 5700 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | SNEX 120312ZZ; SNGN 090308E; SNGN 090308S; SNGN 090308S-01525; SNGN 090308S-01020; SNGN 090312S; SNGN 090312S-01020; SNGN 090316S; SNMN 090308E; SNMN 090308S; SNMN 090312E; SNMN 090312S; SNMN 090316S |
