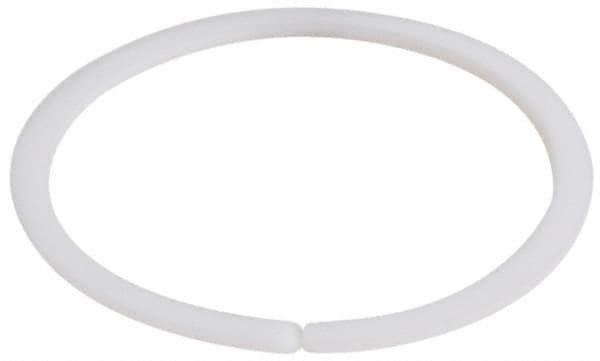

Value Collection - 0.515" ID x 11/16" OD, PTFE O-Ring - 3/64" Thick, 55 Durometer
Item #: 78004330
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
PTFE is a thermoplastic fluoroethylene resin that offers excellent chemical and temperature resistance. It also offer low friction, dielectric strength, zero water absorption, toughness and flexibility.
| Product Specifications | |
|---|---|
| Material | PTFE |
| Dash Number | 112 |
| Durometer | 55 |
| Inside Diameter (Decimal Inch) | 0.5150 |
| Inside Diameter (mm) | 13.08 |
| Outside Diameter (Decimal Inch) | 0.6880 |
| Outside Diameter (mm) | 17.47 |
| Thickness (mm) | 1.19 |
| Thickness (Inch) | 3/64 |
| Thickness (Decimal Inch) | 0.0480 |
| Maximum Temperature (F) | 500.000 |
| Minimum Temperature (F) | -65.000 |
