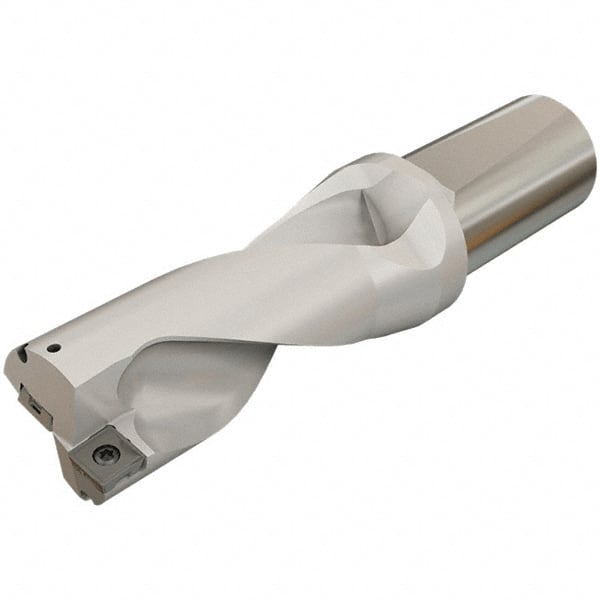

Iscar - 46mm Max Drill Depth, 2xD, 23mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Whistle Notch Shank
Item #: 78050176
Brand: Iscar
Model #: 3201376
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 23.00 |
| Drill Diameter (Decimal Inch) | 0.9055 |
| Maximum Drill Depth (mm) | 46.00 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 25.00 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 25.50 |
| Overall Length/Projection (mm) | 122.00 |
| Insert Compatibility | SOGX-AL; SOMX-DT; SOMX-GF |
| Body Length (mm) | 66.00 |
| Shank Length (mm) | 56.00 |
| Collar Diameter (mm) | 32.00 |
| Series | DR-TWIST |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | G3/8 |
