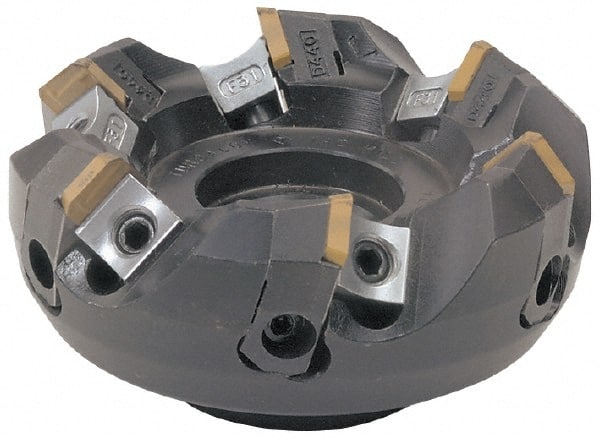

Tungaloy - 4.921" Cut Diam, 1-1/2" Arbor Hole, 0.157" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 6 Inserts, SD..N42Z..N Insert, Right Hand Cut, 6 Flutes, Series TMD
Item #: 78069408
Brand: Tungaloy
Model #: 6808023
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.9210 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | SD..N42Z..N |
| Series | TMD |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Maximum Body Diameter (Decimal Inch) | 5.4720 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | SDKN42ZTN; SDKR42ZSR-MJ; SDMR 42ZSN-MJ |
