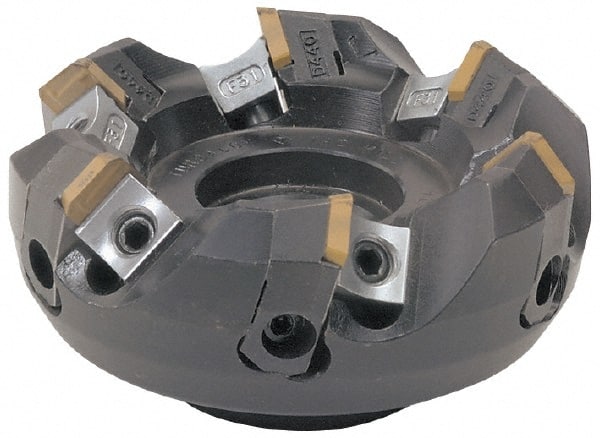

Tungaloy - 6.299" Cut Diam, 2" Arbor Hole, 0.157" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 8 Inserts, SD..N42Z..N Insert, Right Hand Cut, 8 Flutes, Series TMD
Item #: 78069416
Brand: Tungaloy
Model #: 6808028
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 6.2990 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | SD..N42Z..N |
| Series | TMD |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Number of Flutes | 8 |
| Keyway Width (Decimal Inch) | 0.7500 |
| Maximum Body Diameter (Decimal Inch) | 6.5110 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | SDKN42ZTN; SDKR42ZSR-MJ; SDMR 42ZSN-MJ |
