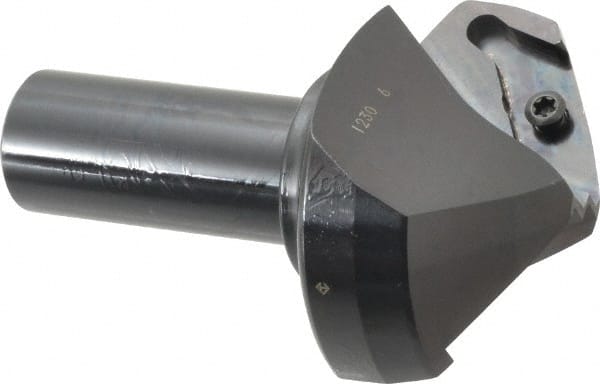

Tungaloy - 60° Lead Angle, 2.834" Max Cut Diam, 2.204" Min Cut Diam, 0.571" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, XCET Insert Style, 5.119" Overall Length, Straight Shank, 60° Included Angle
Item #: 78069846
Brand: Tungaloy
Model #: 6829416
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 2.2040 |
| Maximum Cutting Diameter (Decimal Inch) | 2.8340 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 60 |
| Included Angle | 60 |
| Overall Length (Decimal Inch) | 5.1190 |
| Insert Style | XCET |
| Maximum Depth of Cut (Decimal Inch) | 0.5710 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Toolholder Style | ECC |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.9690 |
| Weldon Flat | Yes |
| Axial Rake Angle | -5 to -3 |
| Radial Rake Angle | -15 to -12 |
| Maximum RPM | 3000 |
| Toolholder Material | Carbide |
