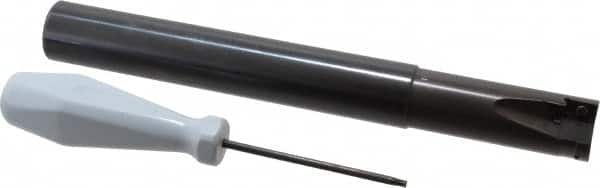

Tungaloy - 1" Cut Diam, 0.452" Max Depth of Cut, 1" Shank Diam, 8-3/4" OAL, Indexable Square Shoulder Centercutting End Mill - XXMU 12 Inserts, Cylindrical Shank, 90° Lead Angle, Series Jetmill Multi X
Item #: 78070364
Brand: Tungaloy
Model #: 6821661
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Inch) | 8-3/4 |
| Overall Length/Projection (Decimal Inch) | 8.7500 |
| Lead Angle | 90 |
| Series | Jetmill Multi X |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.4520 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | Centercutting End Mill |
| Cutter Style | EVX |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 2.7500 |
| Weldon Flat | No |
| Insert Compatibility | XXMU 12 |
| Shank Length (Decimal Inch) | 6.0000 |
