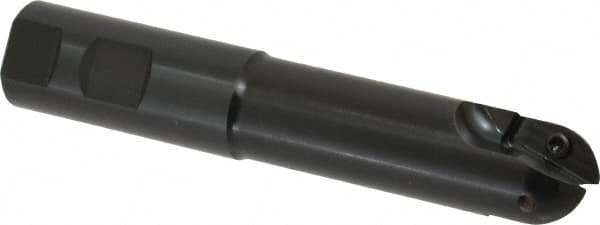

Tungaloy - 1" Cut Diam, 0.827" Max Depth of Cut, 1" Shank Diam, 5.53" OAL, Indexable Ball Nose End Mill - 3-1/4" Head Length, Straight Shank, EBP Toolholder, ZPET 100 Insert
Item #: 78070596
Brand: Tungaloy
Model #: 6829367
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.8270 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | ZPET 100 |
| Toolholder Style | EBP |
| Series | Jetmill |
| Overall Length (Decimal Inch) | 5.5300 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 3.2500 |
