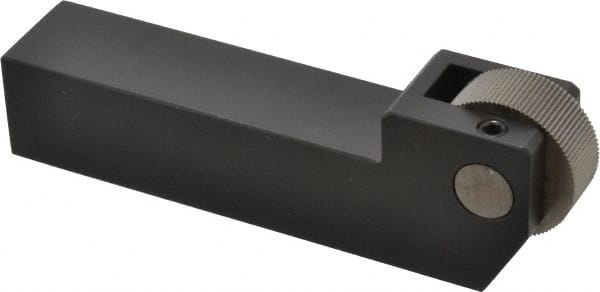

Made in USA - RH Cut, 1" Wide x 1" High x 3-1/2" Long Square Shank, Fixed Bump Knurlers - 1 Knurl Required, 1-1/4" Diam x 1/2" Wide Face, 1/2" Hole Diam, Series PH
Item #: 78150422
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Knurler Type | Fixed |
| Cutting Direction | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Shank Length (Inch) | 3-1/2 |
| Knurl Diameter (Inch) | 1-1/4 |
| Knurl Face Width (Inch) | 1/2 |
| Knurl Hole Diameter (Inch) | 1/2 |
| Number of Knurls Required | 1 |
| Knurl Series | PH |
| Modular | No |
| Includes Knurl Wheels | No |
| Shank Shape | Square |
| Overall Length (Decimal Inch) | 5.0000 |
