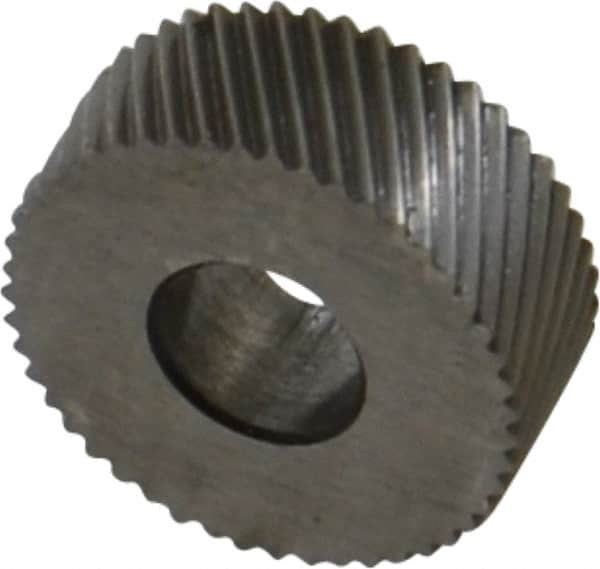

Made in USA - 1/2" Diam, 80° Tooth Angle, Standard (Shape), Form Type High Speed Steel Left-Hand Diagonal Knurl Wheel - 3/16" Face Width, 3/16" Hole, 96 Diametral Pitch, 30° Helix, Bright Finish, Series EP
Item #: 78152964
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Left-hand diagonal wheels are designed to produce right-hand diagonal patterns. On a two-wheel knurling tool, left and right diagonal wheels are used together to create a diamond design.
Form wheels produce textured patterns by forming an impression. This process displaces the material and increases the diameter of the workpiece.
High speed steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Knurl Shape | Standard |
| Pattern | Left-Hand Diagonal |
| Form or Cut Type | Form |
| Material | High Speed Steel |
| Knurl Diameter (Inch) | 1/2 |
| Face Width (Inch) | 3/16 |
| Hole Diameter (Inch) | 3/16 |
| Pitch System | Diametral |
| Diametral Pitch | 96 |
| Knurl Series | EP |
| Included Tooth Angle | 80 |
| Finish/Coating | Bright |
| Helix Angle | 30 |
