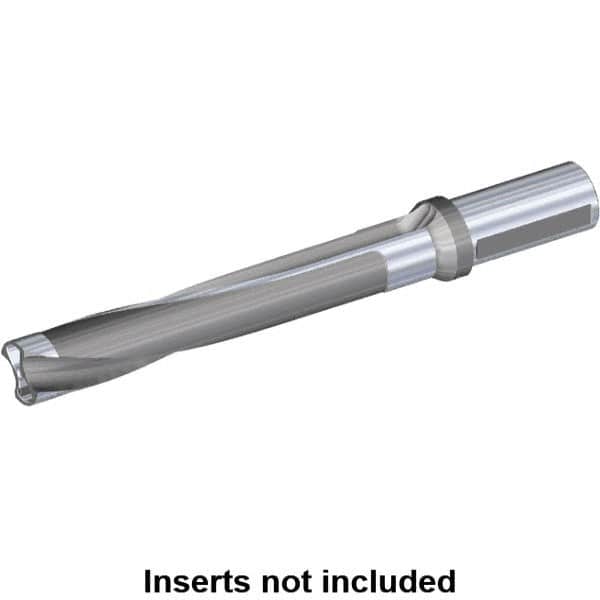

Kennametal - Series KSEM Plus, Head Connection FDS40, 3xD, 2" Shank Diam, Drill Body - 106.93mm Drill Body Length to Flange, SSF Toolholder, 10.95" OAL, 132mm Drill Body Length, 4.21" Flute Length, Weldon Flat Shank, Through Coolant
Item #: 78257144
Brand: Kennametal
Model #: 3952344
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS40 |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Drill Body Length to Flange (mm) | 106.93 |
| Drill Body Length to Flange (Decimal Inch) | 4.2100 |
| Toolholder Style | SSF |
| Overall Length (Decimal Inch) | 10.9500 |
| Gage Length (mm) | 132.00 |
| Gage Length (Decimal Inch) | 5.1968 |
| Flute Length (Decimal Inch) | 4.2100 |
| Shank Type | Weldon Flat |
| Shank Length (Decimal Inch) | 3.7500 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 2 |
| Includes | Clamping Screws; Pipe Plug |
