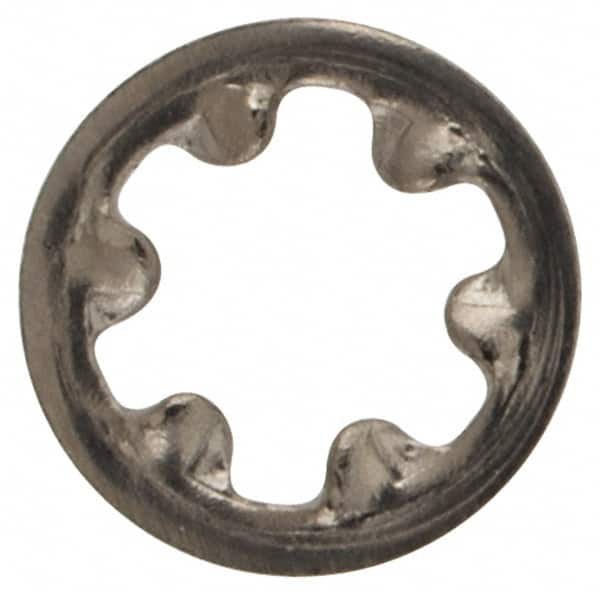

Value Collection - #2 Screw, 0.095" ID, Stainless Steel Internal Tooth Lock Washer - 0.2" OD, Grade 18-8
Item #: 78361813
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Internal tooth lock washers have teeth along the inside diameter. They prevent nut and bolt heads from loosening.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Tooth Type | Internal Tooth |
| Screw Size | #2 |
| System of Measurement | Inch |
| Material | Stainless Steel |
| Inside Diameter (Decimal Inch) | 0.0950 |
| Outside Diameter (Decimal Inch) | 0.2000 |
| Thickness (Decimal Inch) | 0.016 |
| Material Grade | 18-8 |
| Minimum Inside Diameter (Decimal Inch) | 0.0890 |
| Maximum Inside Diameter (Decimal Inch) | 0.0950 |
| Minimum Outside Diameter (Decimal Inch) | 0.1750 |
| Maximum Outside Diameter (Decimal Inch) | 0.2000 |
| Minimum Thickness (Decimal Inch) | 0.0100 |
| Maximum Thickness (Decimal Inch) | 0.0160 |
| Hardness | Rockwell C20-C45 |
| Fastener Standard | ASME B18.21.1 |
| Military Specification | Does Not Meet Military Specifications |
