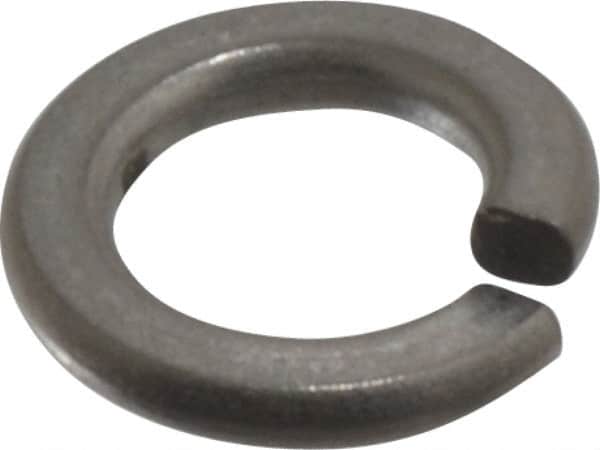

Value Collection - #10, 0.047" Thick Split Lock Washer - 316 Stainless Steel, Uncoated, 0.193" Min ID, 0.2" Max ID
Item #: 78361888
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | #10 |
| Material | Stainless Steel |
| Material Grade | 316 |
| Finish/Coating | Uncoated |
| Thickness (Decimal Inch) | 0.0470 |
| Minimum Inside Diameter (Decimal Inch) | 0.1930 |
| Maximum Inside Diameter (Decimal Inch) | 0.2000 |
| Minimum Outside Diameter (Decimal Inch) | 0.3340 |
| Maximum Outside Diameter (Decimal Inch) | 0.3340 |
| Military Specification | Does Not Meet Military Specifications |
| Minimum Thickness (Decimal Inch) | 0.0470 |
| Maximum Thickness (Decimal Inch) | 0.0470 |
| Hardness | Rockwell C35-C43 |
| Fastener Standard | ASME B18.21.1; SAE J405 |
