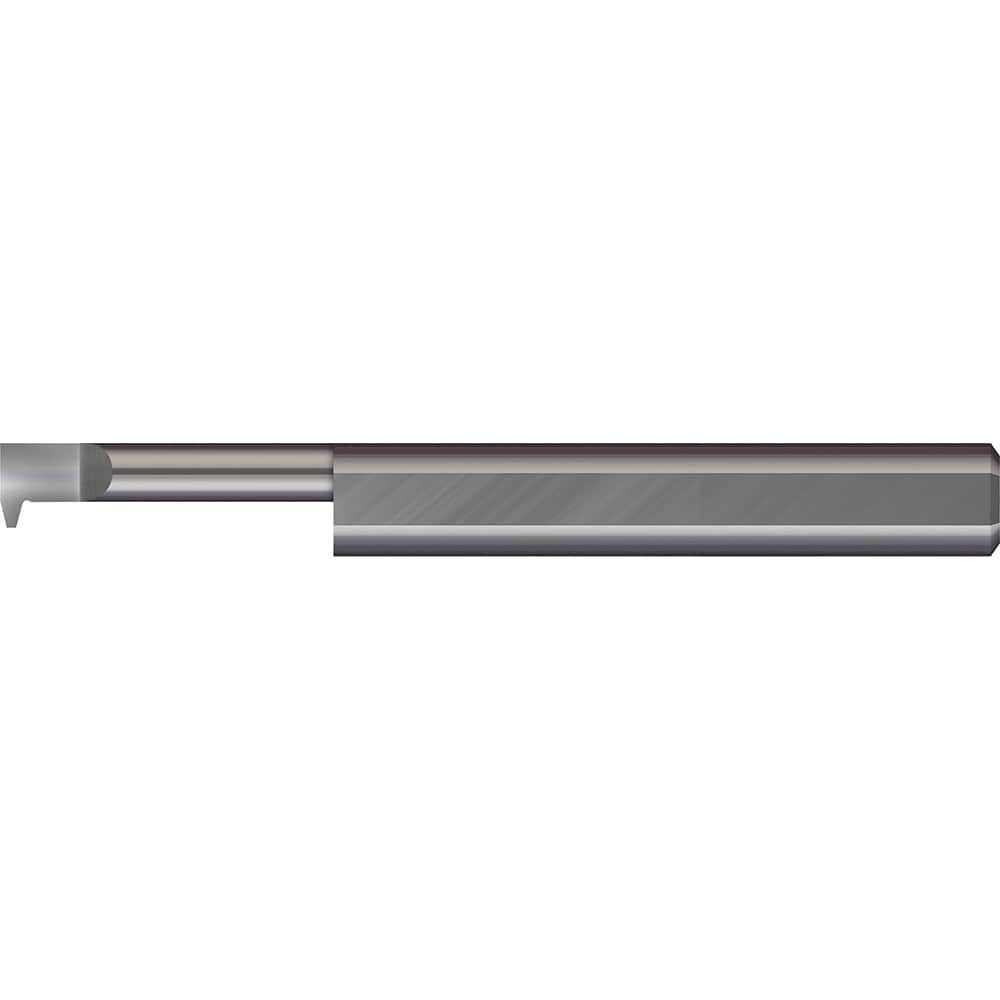

Single Point Threading Tools; Thread Type: Internal, External; Material: Solid Carbide; Profile Angle: 29; Threading Diameter (Decimal Inch): 0.2910; Cutting Depth (Decimal Inch): 1.0000; Maximum Threads Per Inch: 12
Item #: 76112770
Brand: Micro 100
Model #: IAT2-1000-12
Product Specifications
| Thread Type | Internal; External |
| Material | Solid Carbide |
| Profile Angle | 29 |
| Threading Diameter (Decimal Inch) | 0.2910 |
| Cutting Depth (Decimal Inch) | 1.0000 |
| Maximum Threads Per Inch | 12 |
| Minimum Threads Per Inch | 12 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Thread Direction | Right Hand |
| Projection from Edge (Decimal Inch) | 0.0850 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Flat Width (Decimal Inch) | 0.0280 |
| Coating/Finish | Uncoated |
| Coolant Through | No |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
