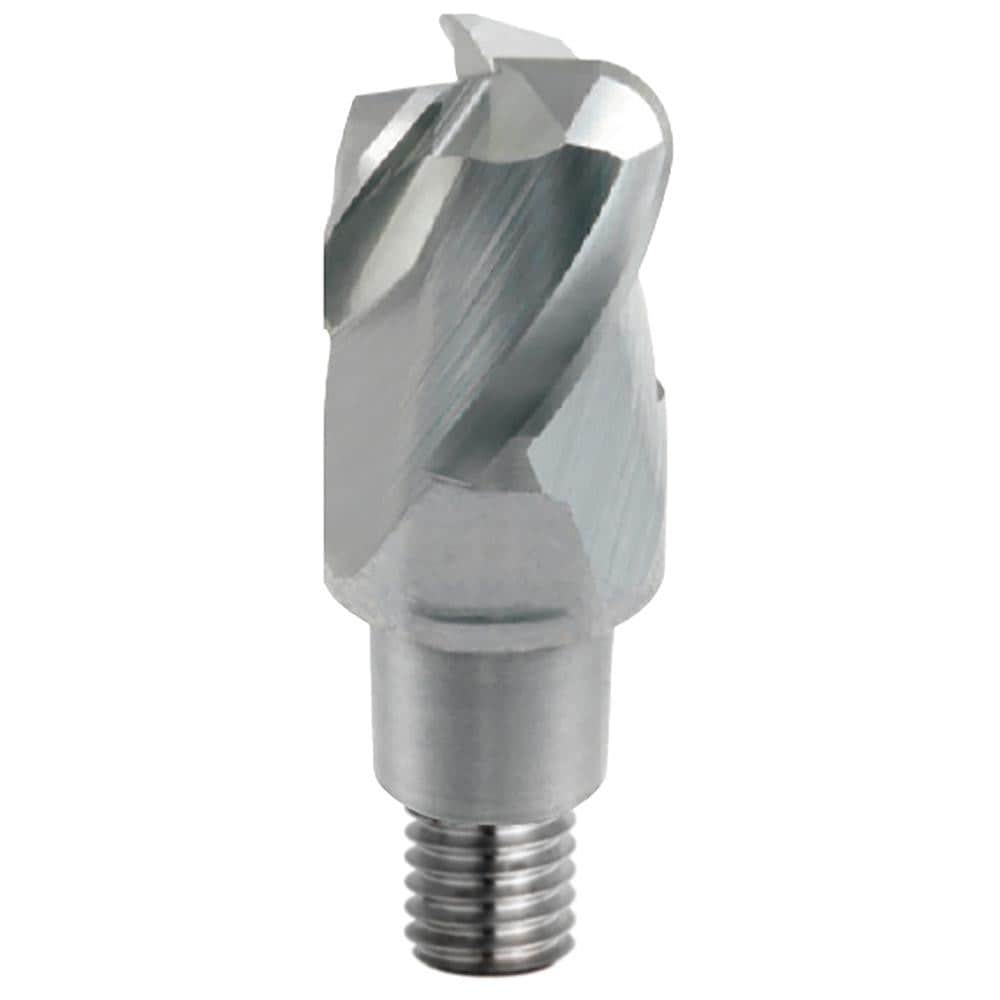

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 22.00; Length of Cut (mm): 18.6000; Number Of Flutes: 3
Item #: 76117670
Brand: Mitsubishi
Model #: 846639
Product Specifications
| Mill Diameter (mm) | 22.00 |
| Length of Cut (mm) | 18.6000 |
| Number Of Flutes | 3 |
| Overall Length (mm) | 54.0000 |
| Corner Radius (mm) | 3.20 |
| Coating/Finish | Uncoated |
| End Mill Material | Carbide |
| Corner Radius (Decimal Inch) | 0.1260 |
| Overall Length (Decimal Inch) | 2.1260 |
| Mill Diameter (Decimal Inch) | 0.8661 |
| Centercutting | Yes |
| Connection Type | iMX20 |
| Flute Type | Helical |
| Material Grade | Solid Carbide |
| Helix Angle | 37.5 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Coolant Through | No |
| Variable Helix | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7323 |
| Variable Index | No |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
