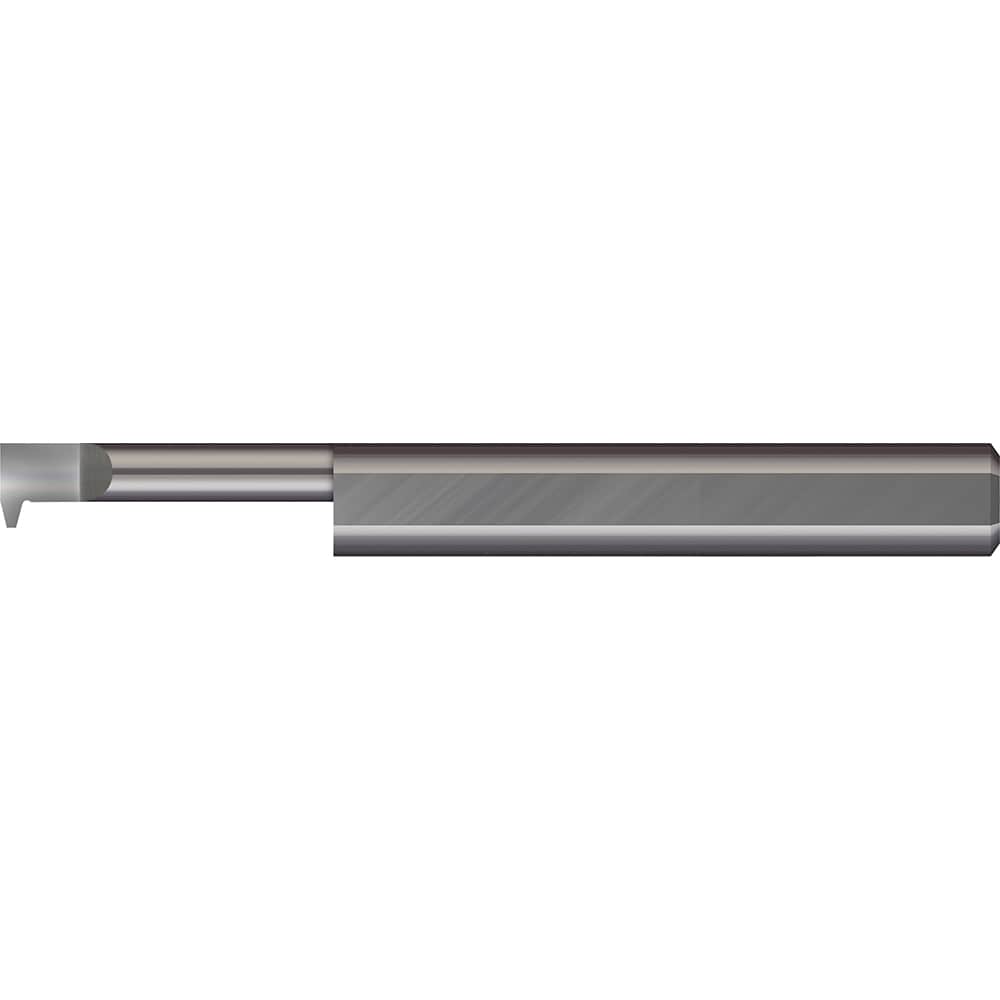

Single Point Threading Tools; Thread Type: Internal, External; Material: Solid Carbide; Profile Angle: 29; Threading Diameter (Decimal Inch): 0.2410; Cutting Depth (Decimal Inch): 1.0000; Maximum Threads Per Inch: 14
Item #: 76116649
Brand: Micro 100
Model #: IAT2-1000-14
Product Specifications
| Thread Type | Internal; External |
| Material | Solid Carbide |
| Profile Angle | 29 |
| Threading Diameter (Decimal Inch) | 0.2410 |
| Cutting Depth (Decimal Inch) | 1.0000 |
| Maximum Threads Per Inch | 14 |
| Minimum Threads Per Inch | 14 |
| Shank Diameter (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Thread Direction | Right Hand |
| Projection from Edge (Decimal Inch) | 0.0700 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Flat Width (Decimal Inch) | 0.0240 |
| Coating/Finish | Uncoated |
| Coolant Through | No |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
