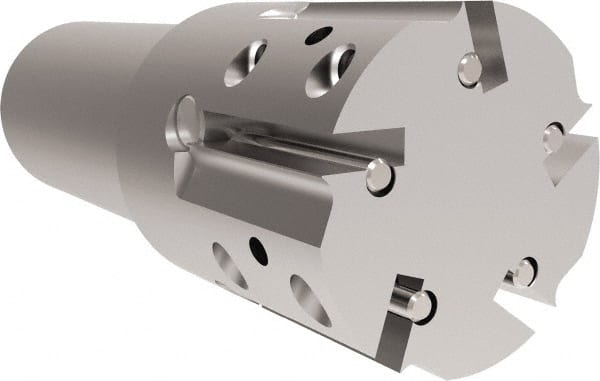

Allied Machine and Engineering - 1.755 (Straight), 1.888 (Tapered)" Cut Diam, 1-1/4" Shank Diam, Internal/External Indexable Thread Mill - Multiple Insert Styles, 38.1mm Insert Size, Toolholder Style THP, 4 1/2" OAL
Item #: 78407723
Brand: Allied Machine and Engineering
Model #: THP-1755-5F150
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.7550 (Straight); 1.8880 (Tapered) |
| Insert Style | TN150K-AP10; TN150K-AP8; TN150K-BSPP11; TN150K-BSPT11; TN150K-FA10; TN150K-FA12; TN150K-FA5; TN150K-FA6; TN150K-FA8; TN150K-M2.0E; TN150K-M2.0I; TN150K-M2.5I; TN150K-M3.0I; TN150K-M3.5I; TN150K-M4.0E; TN150K-M4.0I; TN150K-M4.5E; TN150K-M4.5I; TN150K-M5.0E |
| Insert Size (mm) | 38.10 |
| Insert Size (Decimal Inch) | 1.5000 |
| Toolholder Style | THP |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Insert Holding Method | Pin; Screw |
| Number of Flutes | 5 |
