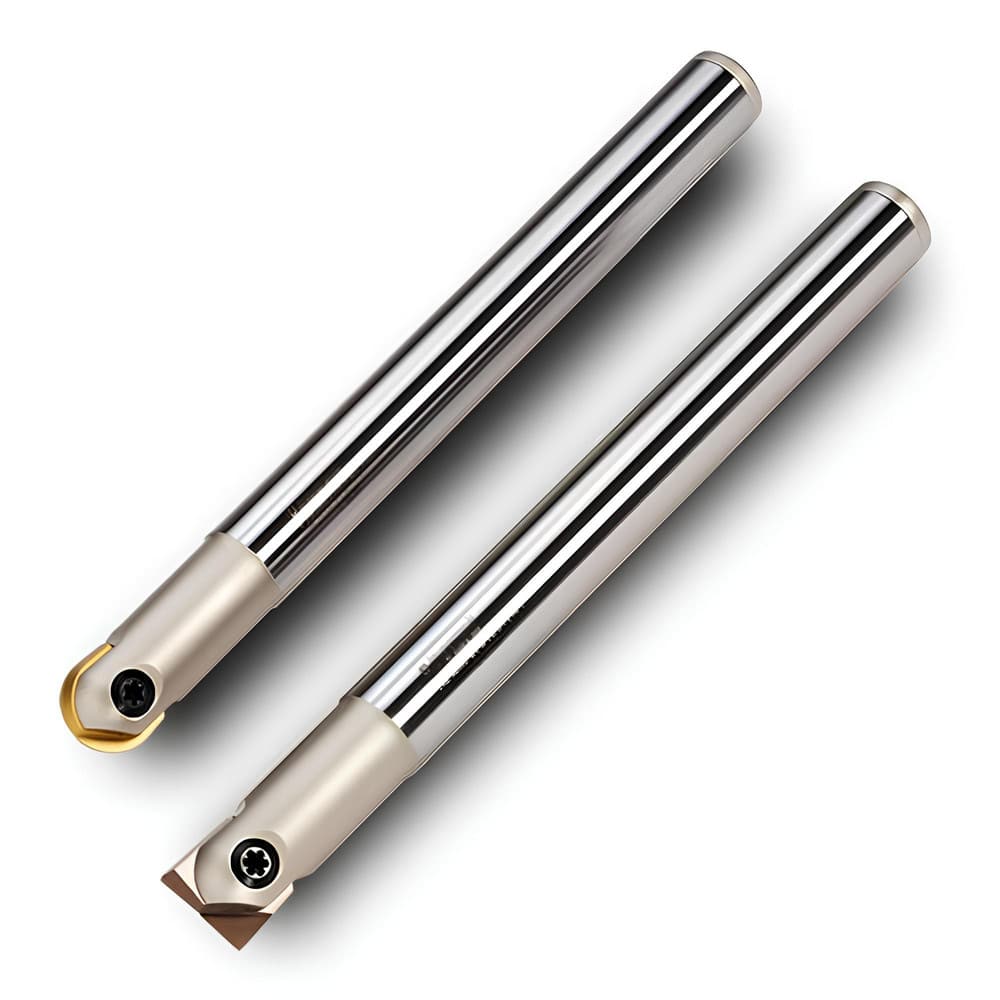

Indexable Ball Nose End Mills; Milling Diameter: 1.2500 in; Maximum Depth Of Cut: 0.6200 in; Shank Diameter: 1.2500 in; Shank Type: Cylindrical; Compatible Insert Style: NQHG; Compatible Insert Size Code: 3107; Toolholder Style: 12A9S; Series: 12A9; Overa
Item #: 78461688
Brand: Ingersoll Cutting Tools
Model #: 3031012
Product Specifications
| Milling Diameter | 1.2500 in |
| Maximum Depth Of Cut | 0.6200 in |
| Shank Diameter | 1.2500 in |
| Shank Type | Cylindrical |
| Compatible Insert Style | NQHG |
| Compatible Insert Size Code | 3107 |
| Toolholder Style | 12A9S |
| Series | 12A9 |
| Overall Length (mm) | 1.00 |
| Overall Length (Decimal Inch) | 1.00 |
| Overall Length (Inch) | 1.00 |
| Tool Application | Chamfering; Profile Milling; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Normal Pressure |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 3.0300 in |
