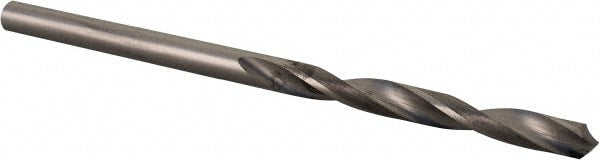

Jobber Drill: 3.30 mm Dia, 118 deg Point, Solid Carbide
Item #: 94582087
Brand: SGS
Model #: 61070
Product Specifications
| Drill Bit Size (mm) | 3.30 |
| Drill Bit Size (Decimal Inch) | 0.1299 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Facet |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1299 |
| Overall Length (mm) | 66.04 |
| Overall Length (Decimal Inch) | 2.6000 |
| Spiral Type | Regular |
| Flute Length (mm) | 36.07 |
| Flute Length (Decimal Inch) | 1.4200 |
| Series | 101 |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (mm) | 28.00 |
| Shank Length (Decimal Inch) | 1.1800 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in; -0.0127 to 0.0000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Drill Bit Size Range (mm) | 3.00 - 4.00 |
| Material Grade | Micrograin |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Country of Origin | UNITED STATES |
