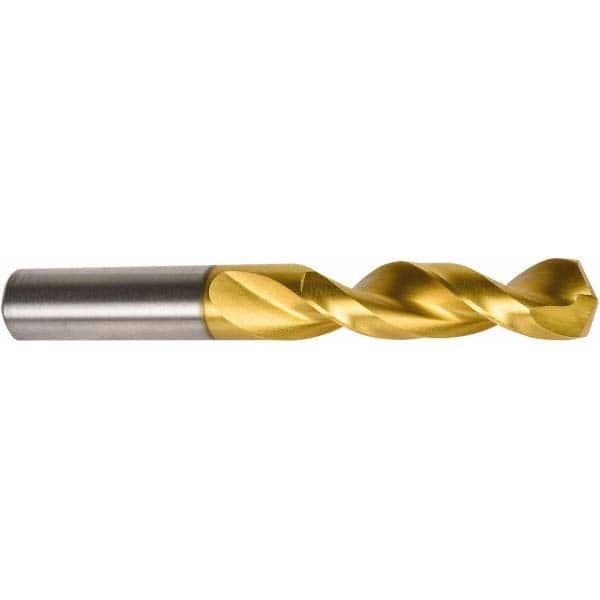

Screw Machine Length Drill Bit: 0.1935″ Dia, 135 °, High Speed Steel TiN Finish, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series QC41G
Item #: 78573953
Brand: Precision Twist Drill
Model #: 5997378
Product Specifications
| Drill Bit Size (Wire) | #10 |
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Drill Point Angle | 135 |
| Flute Type | Parabolic |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Drill Bit Size (Decimal Inch) | 0.1935 |
| Overall Length (Inch) | 2-1/4 |
| Series | QC41G |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Flute Length (Inch) | 1-3/16 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Specification Designation | ANSI |
