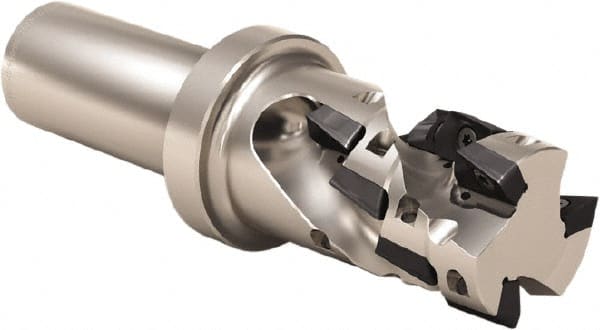

Seco - 32mm Cut Diam, 44mm Max Depth of Cut, 25mm Shank Diam, 125.5mm OAL, Indexable Square Shoulder Helical End Mill - XO.. 1204 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Super Turbo
Item #: 78724051
Brand: Seco
Model #: 58515
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Overall Length/Projection (mm) | 125.50 |
| Overall Length/Projection (Decimal Inch) | 4.9409 |
| Lead Angle | 90 |
| Series | Super Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 44.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.7323 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 3 |
| Head Length (mm) | 70.00 |
| Head Length (Decimal Inch) | 2.7559 |
| Weldon Flat | Yes |
| Insert Compatibility | XO.. 1204 |
| Shank Length (Decimal Inch) | 2.2047 |
| Shank Length (mm) | 56.00 |
| Maximum RPM | 18400 |
