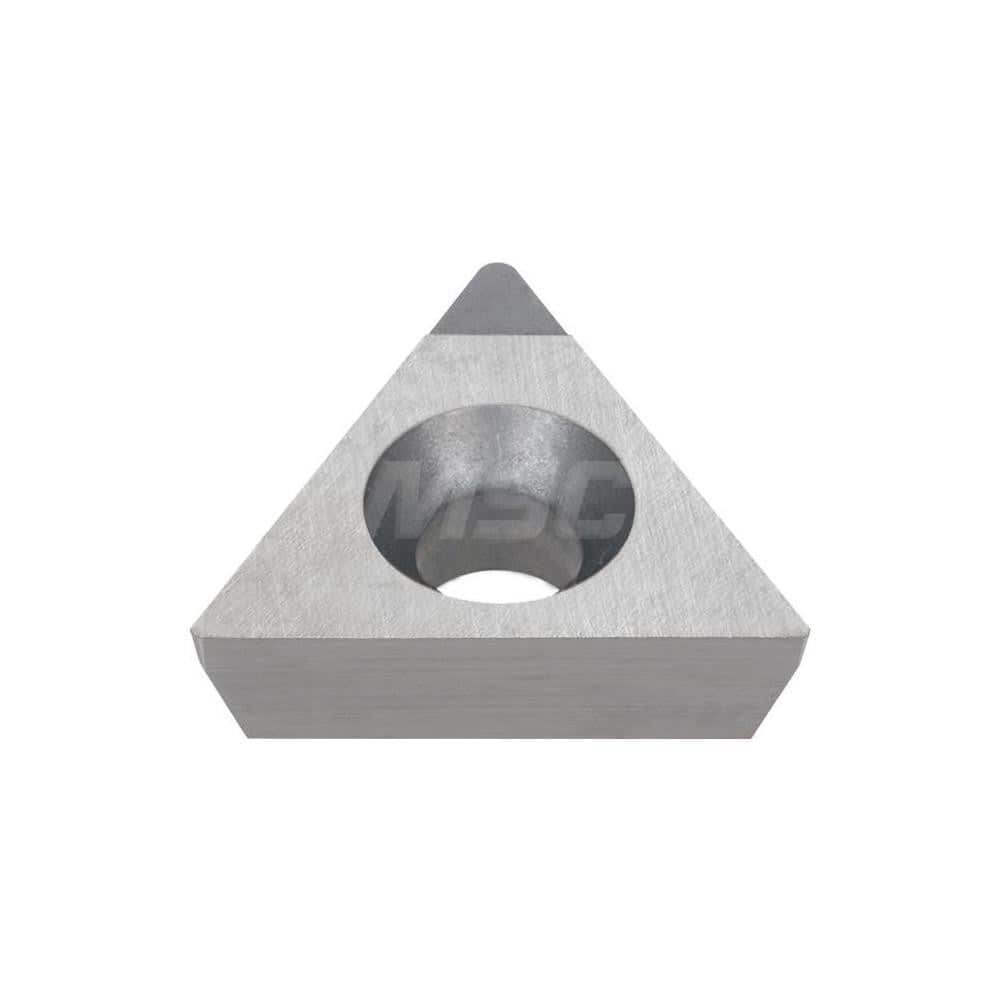

Turning Insert: TPGA321DIA DX140, Polycrystalline Diamond Uncoated Finish, Neutral, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, 60.0 ° N/A Triangle, Series TPGA
Item #: 78737681
Brand: Tungaloy
Model #: 6808783
Product Specifications
| Insert Style | TPGA |
| Insert Size Code | 321 |
| Insert Shape | Triangle |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | DX140 |
| Hole Diameter (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | TPGA |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Ansi Code | TPGA321DIADX140 |
| Iso Code | TPGA 321-DIA DX140 |
| Chip Breaker | FT-DIA |
| Coating/Finish | Uncoated |
