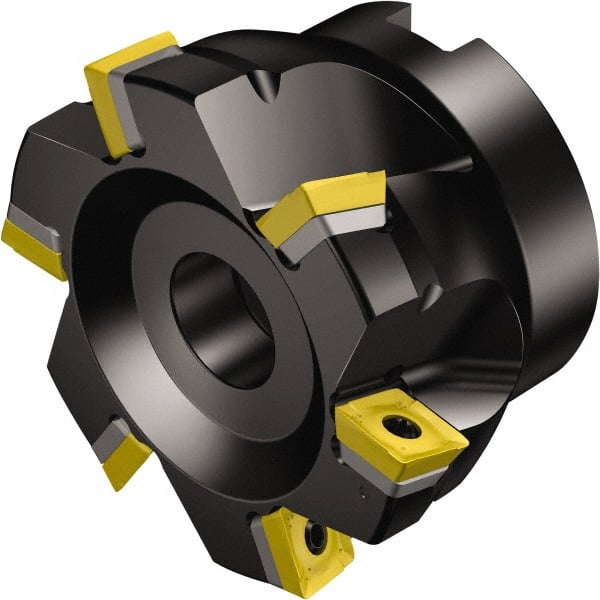

Sandvik Coromant - 5 Inserts, 1-1/2" Cut Diam, 3/4" Arbor Diam, 5.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 490R-08T308 Insert Compatibility, Through Coolant, Series CoroMill 490
Item #: 78756467
Brand: Sandvik Coromant
Model #: 5723537
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 90 |
| Insert Compatibility | 490R-08T308 |
| Series | CoroMill 490 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | A490..Rxx |
| Number of Flutes | 5 |
| Maximum RPM | 30200 |
| ISO Number | A490-038R19-08H |
| Toolholder Material | Steel |
