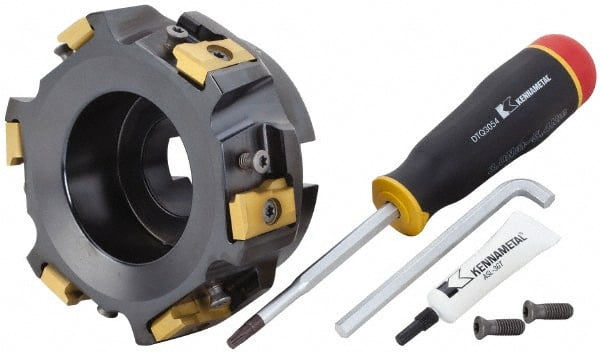

Kennametal - 6 Inserts, 5" Cut Diam, 1-1/2" Arbor Diam, 25.45mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 2-3/8" High, LN.U 2210.. Insert Compatibility, Series MEGA90
Item #: 78776283
Brand: Kennametal
Model #: 4136381
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 127.00 |
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 60.33 |
| Overall Height (Inch) | 2-3/8 |
| Overall Height (Decimal Inch) | 2.3750 |
| Insert Compatibility | LN.U 2210.. |
| Series | MEGA90 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 25.45 |
| Maximum Depth of Cut (Decimal Inch) | 1.0020 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | MEGA |
| Number of Flutes | 6 |
| Hub Diameter (mm) | 96.77 |
| Hub Diameter (Decimal Inch) | 3.8100 |
| Maximum Body Diameter (Decimal Inch) | 4.9210 |
| Maximum RPM | 9990 |
| Complete Insert Compatibility | LN.U 221012PNSR.. |
