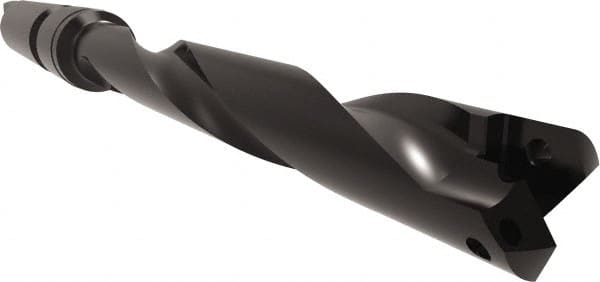

Allied Machine and Engineering - Series 1, 18mm Max Diam, 3MT Taper Shank, Helical Flute Spade Drill - 4-3/4" Max Depth, 5-7/8" Body Length, 9-3/4" OAL, Standard Length, Through Coolant
Item #: 78777190
Brand: Allied Machine and Engineering
Model #: 24010H-003IS045
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 1 |
| Minimum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.7087 |
| Shank Type | Taper Shank |
| Shank Taper Size | 3MT |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 9-3/4 |
| Overall Length (mm) | 247.65 |
| Overall Length (Decimal Inch) | 9.7500 |
| Maximum Drill Depth (mm) | 120.65 |
| Maximum Drill Depth (Inch) | 4-3/4 |
| Maximum Drill Depth (Decimal Inch) | 4.7500 |
| Flute Type | Helical Flute |
| Flute Length (mm) | 149.23 |
| Flute Length (Inch) | 5-7/8 |
| Flute Length (Decimal Inch) | 5.8750 |
| Body Length (Inch) | 5-7/8 |
| Body Length (Decimal Inch) | 5.8750 |
| Body Length (mm) | 149.23 |
| Through Coolant | Yes |
