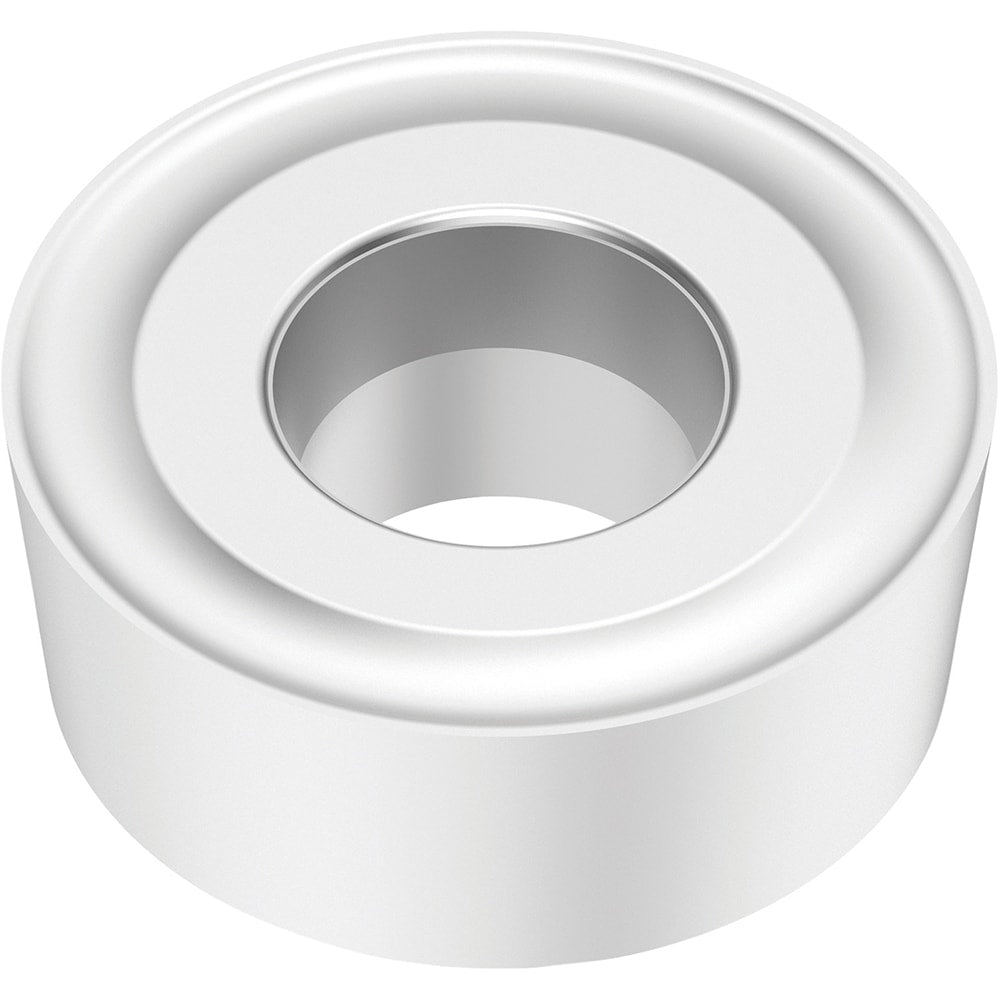

Turning Insert: RCMM64-46, Carbide
Item #: 14378129
Brand: Seco
Model #: 03279994
Product Specifications
| ANSI Insert Code | RCMM64 |
| ISO Insert Code | RCMM190600 |
| Relief Angle | 7 |
| Insert Style | RCMM |
| Corner Radius (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.3750 |
| Included Angle | 360 |
| Manufacturer Grade | TP25 |
| Coating/Finish | TiCN; Al2O3; Cr |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.2551 |
| Series | RCMM-46 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Insert Material | Carbide |
| Insert Shape | R - Round |
| Grade Characteristics | Stainless Steel (M) - High Toughness; Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | R |
| Hole Diameter (Decimal Inch) | 0.3130 |
| Maximum Depth of Cut (Fractional Inch) | 3/8 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Insert Holding Method | Pin; Clamp; Lever Lock |
| Width (Inch) | 3/4 |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.7500 |
| Insert Length (Inch) | 3/4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Iso Code | RCMM190600-46 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 03279994 |
| Material Grade | P35; P30; P20 |
| Proprietary Coating Designation | Multilayer Coating |
| Lead Angle | 360 |
| Coating Classification | CVD |
| Chip Breaker | 46 |
| Rake Angle | 14 |
| Cutting Edge Style | Honed |
| Industry Standard Number | RCMM64-46 |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Width (mm - 2 Decimals) | 19.05 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | Facing; Profiling; Turning |
| ANSI Size Code | 64 |
| ISO Size Code | 190600 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 64 |
