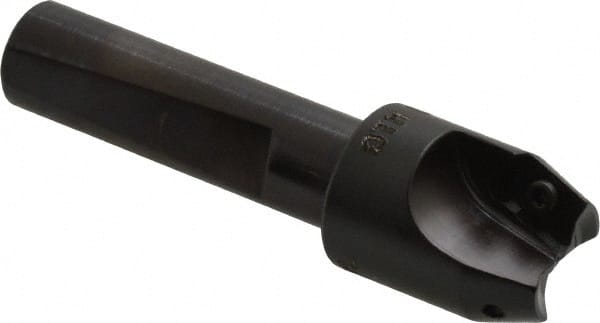

Kyocera - 20° Lead Angle, 9/16" Max Cut Diam, 9/16" Min Cut Diam, 0.33" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, XPMT 0902.. Insert Style, 2.78" Overall Length, Straight Shank
Item #: 78823705
Brand: Kyocera
Model #: 8600714
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.5630 |
| Minimum Cutting Diameter (Decimal Inch) | 0.5630 |
| Maximum Cutting Diameter (Decimal Inch) | 0.5630 |
| Shank Type | Whistle Notch |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Lead Angle | 20 |
| Overall Length (Decimal Inch) | 2.7800 |
| Insert Style | XPMT 0902.. |
| Maximum Depth of Cut (Decimal Inch) | 0.3300 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Toolholder Style | CM |
| Head Length (Inch) | 1 |
| Head Length (Decimal Inch) | 1.0000 |
| Weldon Flat | No |
