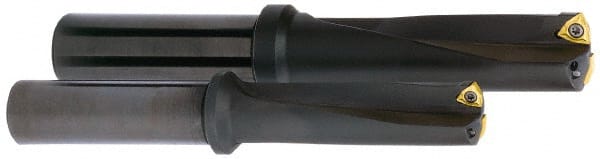

Kyocera - 1.78" Max Drill Depth, 3xD, 19/32" Diam, Indexable Insert Drill
Item #: 78823952
Brand: Kyocera
Model #: 8600760
Product Specifications
| Drill Style | DR |
| Drill Diameter (Inch) | 19/32 |
| Drill Diameter (Decimal Inch) | 0.5940 |
| Maximum Drill Depth (Decimal Inch) | 1.7800 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (Decimal Inch) | 0.0940 |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 4.4900 |
| Insert Compatibility | WCMX S30204-M1A |
| Body Length (Decimal Inch) | 2.4600 |
| Shank Length (Decimal Inch) | 2.0300 |
| Series | Holeshot |
