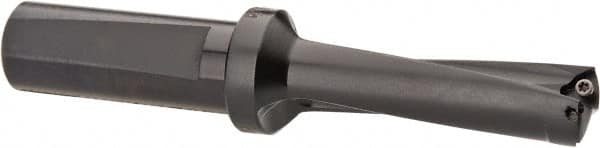

Kyocera - 2.06" Max Drill Depth, 3xD, 11/16" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Whistle Notch Shank
Item #: 78823986
Brand: Kyocera
Model #: 8600765
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Inch) | 11/16 |
| Drill Diameter (Decimal Inch) | 0.6880 |
| Maximum Drill Depth (Decimal Inch) | 2.0600 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (Decimal Inch) | 0.0940 |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 4.8700 |
| Insert Compatibility | WCMX 040204-M1A |
| Body Length (Decimal Inch) | 2.8400 |
| Shank Length (Decimal Inch) | 2.0300 |
| Series | Holeshot |
