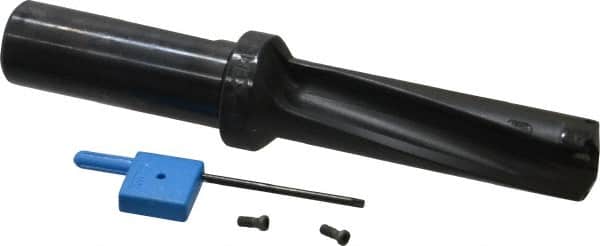

Kyocera - 2-1/4" Max Drill Depth, 3xD, 3/4" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Whistle Notch Shank
Item #: 78824000
Brand: Kyocera
Model #: 8600768
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Inch) | 3/4 |
| Drill Diameter (Decimal Inch) | 0.7500 |
| Maximum Drill Depth (Decimal Inch) | 2.2500 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (Decimal Inch) | 0.0940 |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 5.1300 |
| Insert Compatibility | WCMX 040204-M1A |
| Body Length (Decimal Inch) | 3.1000 |
| Shank Length (Decimal Inch) | 2.0300 |
| Series | Holeshot |
