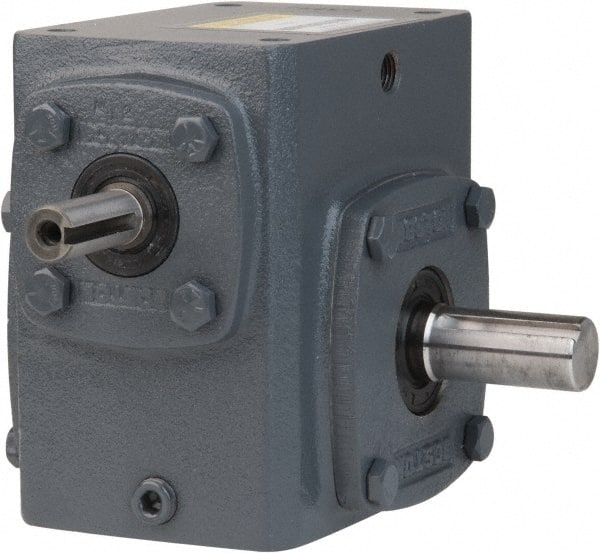

Boston Gear - 1-3/4 Centerline Distance, 30:1, 58 RPM Output, 0.65 Input Horsepower, 573 Lbs. Max Torque, Speed Reducer - Part No. 718-30-J, 5/8" Shaft Diam, Single Shaft Right, 3.81" High
Item #: 78825908
Brand: Boston Gear
Model #: 51671
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 1.750 |
| Ratio | 30:1 |
| PartNo | 718-30-J |
| Shaft Style | Single Shaft Right |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Height (Inch) | 3.81 |
| Maximum Torque Inch/Lbs (Pounds) | 573.00 |
| Maximum Input Horsepower | 0.65 |
| Output RPM at 1750 Input | 58.0 |
