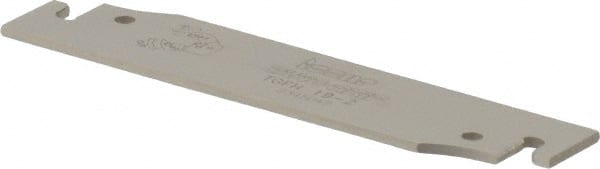

Iscar - 3/4" Blade Height, 1/16" Blade Width, 3.386" OAL, Neutral Cut, Single End Indexable Cut-Off Blade - TGFH Blade, Tang-Grip Series
Item #: 78914942
Brand: Iscar
Model #: 2301889
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 19.00 |
| Blade Height (Decimal Inch) | 0.7480 |
| Blade Width (mm) | 1.65 |
| Blade Width (Decimal Inch) | 0.0620 |
| Blade Overall Length (mm) | 86.00 |
| Blade Overall Length (Decimal Inch) | 3.3860 |
| Blade Style | TGFH |
| Insert Style | TAG 2.. |
| Insert Width (mm) | 1.80 |
| Insert Width (Decimal Inch) | 0.0710 |
| Series | Tang-Grip |
| Insert Seat Size | 1.65 |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 1.5000 |
| Cutting Height (mm) | 15.70 |
| Cutting Height (Decimal Inch) | 0.6180 |
| Minimum Insert Width (mm) | 1.80 |
| Minimum Insert Width (Decimal Inch) | 0.0710 |
| Maximum Insert Width (mm) | 2.40 |
| Maximum Insert Width (Decimal Inch) | 0.0945 |
| Complete Insert Compatibility | TAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-6D; TAG N3A; TAG N3C; TAG N3CB; TAG N3J; TAG N3JS; TAG N3JT; TAG N3LF; TAG N3M; TAG N3UT; TAG N3W; TAG R3C-15D; TAG R3C-6D; TAG R3C-8D; TAG R3J-6D; TAG R3JS-6D |
| Complete Tool Block/Toolholder Style Compatibility | C..TBK..,HS..TBK..,IM..TBK..,SGT.. |
| Manufacturers Catalog Number | TGFH 19-2 |
