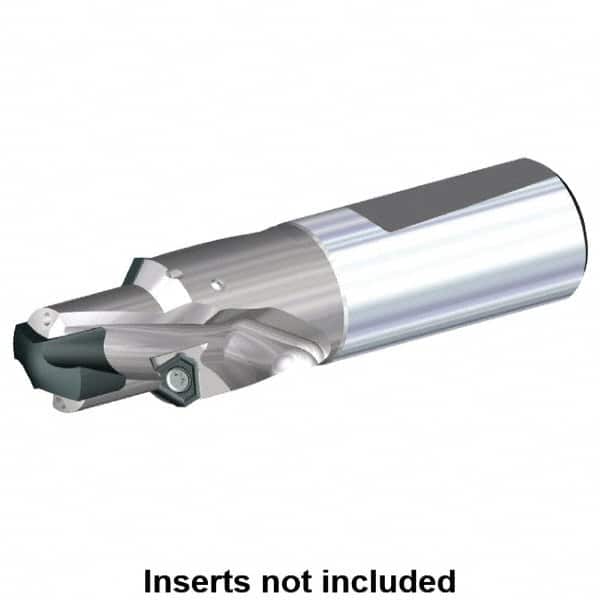

Kennametal - 16 to 18mm Diam, 1xD, 18mm Max Depth, 20mm Shank Diam, 109.59mm OAL, Replaceable Tip Drill - KSEM1600, TPGX 1102ZPR Insert, 1 Seat Size, KSEM Toolholder, Series KSEM Chamfer
Item #: 78919107
Brand: Kennametal
Model #: 1927914
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Chamfer |
| Minimum Drill Diameter (mm) | 16.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.7086 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 0.7087 |
| Maximum Drill Depth (mm) | 18.00 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | KSEM1600; TPGX 1102ZPR |
| Insert Seat Size | 1 |
| Toolholder Style | KSEM |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 2.54 |
| Tip Length (Decimal Inch) | 0.1000 |
| Overall Length (mm) | 109.59 |
| Overall Length (Decimal Inch) | 4.3146 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
