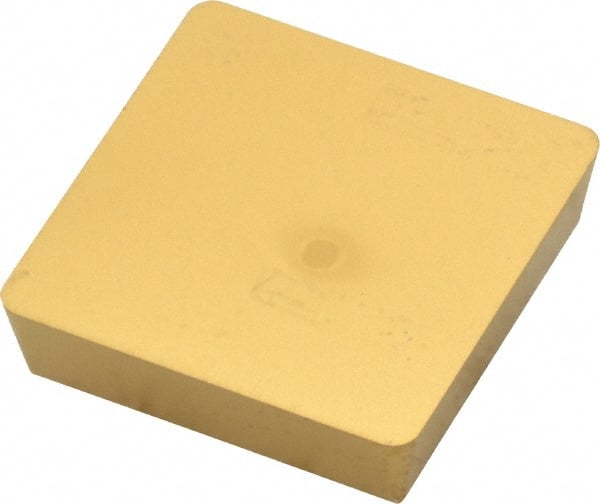

SPG633 KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.1874″ Thick
Item #: 78998705
Brand: Kennametal
Model #: 1182698
Product Specifications
| Insert Style | SPG |
| Insert Size | 633 |
| Insert Material | Solid Carbide |
| Material Grade | C5; C6; C7 |
| Manufacturer Grade | KC725M |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Corner Radius (mm) | 1.20 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Insert Hand | Neutral |
| Coating Process | PVD |
| Iso Code | SPGN190412 |
| Shape | Square |
| Coating/Finish | TiCN; TiN |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
