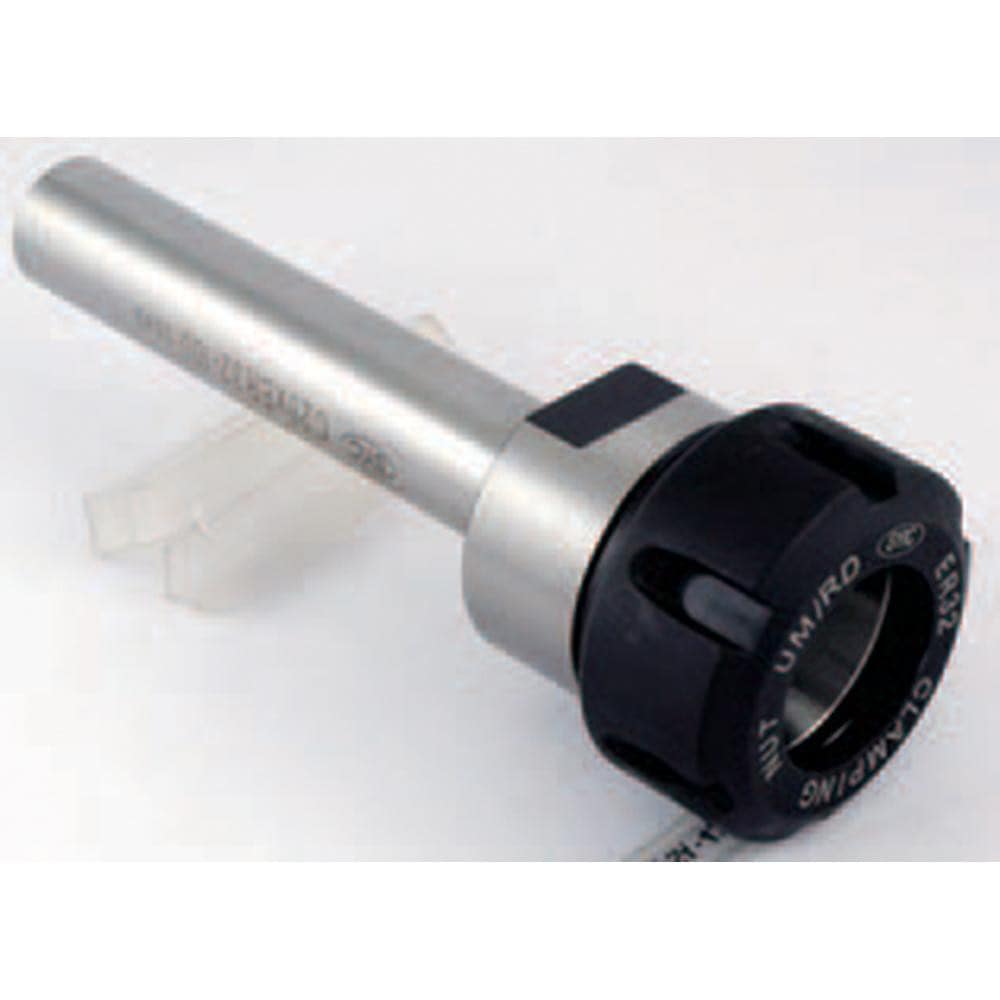

Collet Chuck: 0.50 to 7.10 mm Capacity, ER Collet, 20.00 mm Shank Dia, Straight Shank
Item #: 05972468
Brand: Techniks
Model #: 04805-48
Product Specifications
| Collet System | ER |
| Collet Series | ER11 |
| Shank Type | Straight |
| Projection (mm) | 16.60 |
| Through Coolant | No |
| Minimum Collet Capacity (mm) | 0.50 |
| Minimum Collet Capacity (Decimal Inch) | 0.0190 |
| Maximum Collet Capacity (mm) | 7.10 |
| Overall Length (mm) | 64.6 |
| Nose Diameter (Mm) ( - 2 Decimals) | 19 |
| Shank Diameter (mm) | 20.00 |
| Type | STRSHK |
| UNSPSC Code | 27112808 |
| Thread Size (mm) | M12x1.75 |
