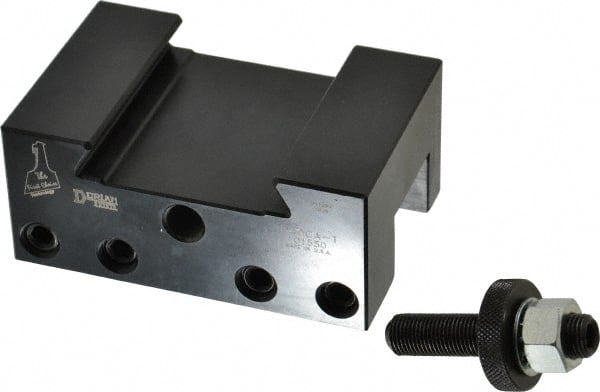

Dorian Tool - Series CA, #1 Turning & Facing Tool Post Holder - 400 to 500mm Lathe Swing, 3" OAH x 4-1/2" OAL, 1-1/4" Max Tool Cutting Size, 1-15/16" Centerline Height
Item #: 79046132
Brand: Dorian Tool
Model #: 73310101550
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CA |
| Tool Post Holder Number | 1 |
| Tool Post Holder Type | Turning & Facing Holder |
| Lathe Swing (mm) | 400 to 500 |
| Lathe Swing (Inch) | 16 to 20 |
| Through Coolant | No |
| Overall Height (mm) | 76.20 |
| Overall Height (Inch) | 3 |
| Overall Height (Decimal Inch) | 3.0000 |
| Overall Length (mm) | 114.30 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Maximum Cutting Tool Size (mm) | 31.75 |
| Maximum Cutting Tool Size (Inch) | 1-1/4 |
| Centerline Height (mm) | 49.21 |
| Centerline Height (Inch) | 1-15/16 |
| Centerline Height (Decimal Inch) | 1.9375 |
| Dorian #1 - Dimension A (mm) | 14.29 |
| Dorian #1 - Dimension A (Inch) | 9/16 |
| Dorian #1 - Dimension A (Decimal Inch) | 0.5625 |
