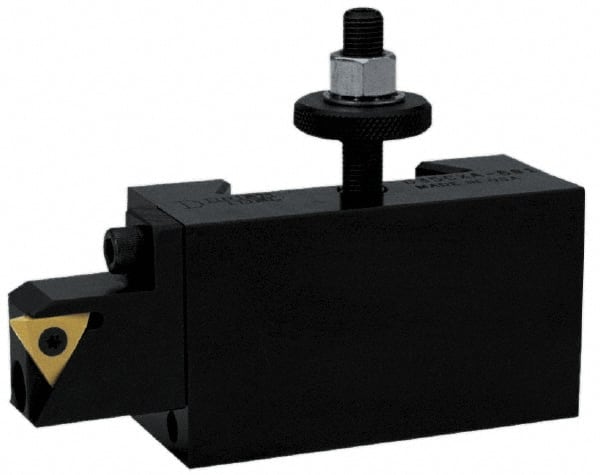

Dorian Tool - Series BXA, #881 Threading Tool Post Holder with External On-Edge Cartridge - 330 to 380mm Lathe Swing, 1-3/4" OAH x 4.37" OAL, 1" Centerline Height
Item #: 79046868
Brand: Dorian Tool
Model #: 73310101282
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | BXA |
| Tool Post Holder Number | 881 |
| Tool Post Holder Type | Threading Tool Holder w/ External On-Edge Cartridge |
| Lathe Swing (mm) | 330 to 380 |
| Lathe Swing (Inch) | 13 to 15 |
| Through Coolant | No |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Overall Length (Decimal Inch) | 4.3690 |
| Insert Number | TNMC-32NV |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Thickness (mm) | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Centerline Height (mm) | 33.32 |
| Centerline Height (Inch) | 1 |
| Centerline Height (Decimal Inch) | 1.3120 |
