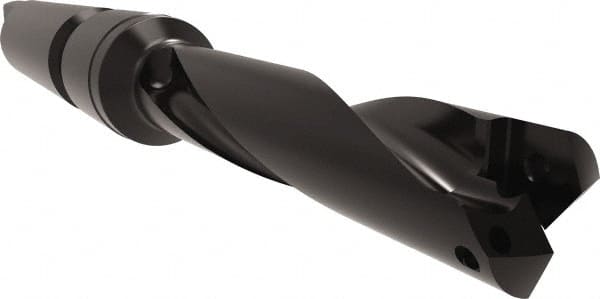

Allied Machine and Engineering - Series 0.5, 5/8" Max Diam, 3MT Taper Shank, Helical Flute Spade Drill - 2-1/2" Max Depth, 3-43/64" Body Length, 7-3/16" OAL, Standard Length, Through Coolant
Item #: 79070785
Brand: Allied Machine and Engineering
Model #: 24005H-003IS040
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 0.5 |
| Minimum Drill Diameter (Inch) | 5/8 |
| Maximum Drill Diameter (Inch) | 5/8 |
| Shank Type | Taper Shank |
| Shank Taper Size | 3MT |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 7-3/16 |
| Maximum Drill Depth (Inch) | 2-1/2 |
| Flute Type | Helical Flute |
| Flute Length (Inch) | 3-5/16 |
| Body Length (Inch) | 3-43/64 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
